Human Body Temperature Measurement Real Time Face Recognition Terminal

Face Reader with Temperature & Mask.

Main Features:

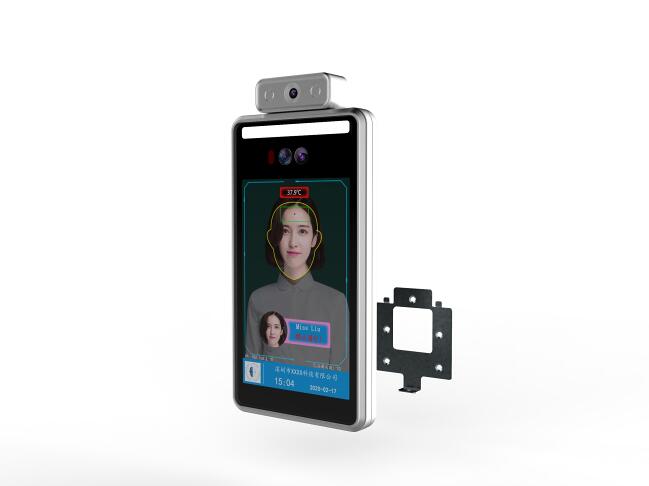

Real Time Face Fever Recognition Device

Real Time Face Fever Recognition Device

Features of Face Fever Attendance Machine

Features of Face Fever Attendance Machine

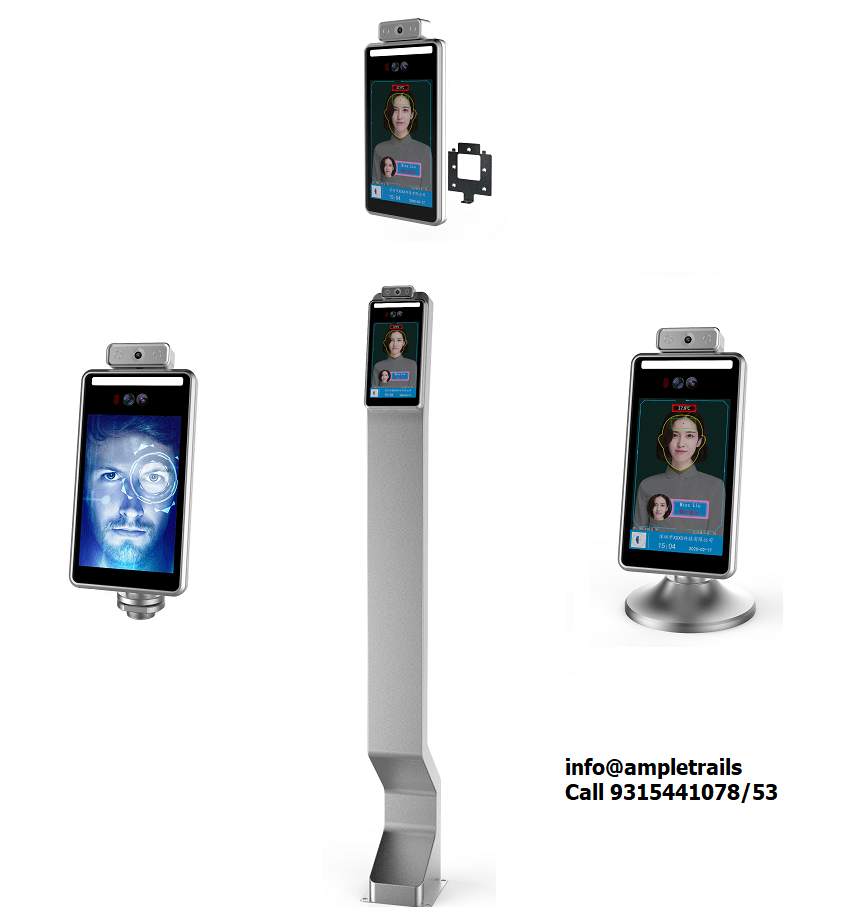

Face Fever Attendance Machine

Face Fever Attendance Machine

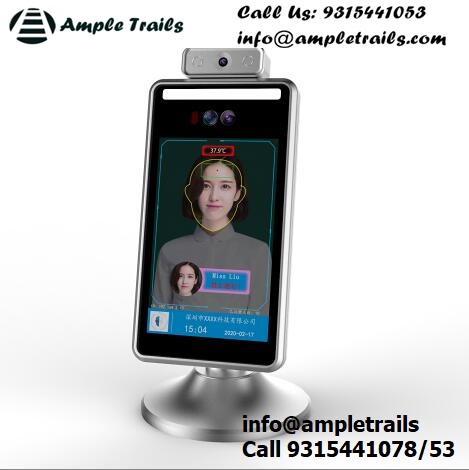

Human Body Temperature Measurement Real Time Face Recognition Device

Human Body Temperature Measurement Real Time Face Recognition Device

  • Support real-time live detection
  • Support human body temperature measurement and high-temperature alarm
  • Support temperature data interface protocol docking
  • Support tracking of personnel movements under strong backlight conditions
  • Unique live face recognition algorithm to accurately recognize faces,face recognition time is less than 5s
  • Built-in domestic CPU
  • Using the Linux operating system, better system stability
  • Support TF card storage, pictures are stored continuously for 1 year or longer (depends on TF card capacity)
  • Meantime between failures MTBF>50000 H
  • Support 24000 face-matching library and 160,000 face recognition records
  • Rich interface protocol,support TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,SMTP,UPNP,MQTT protocol,Windows/Linux
  • Built-in light sensor, automatically adjust the opening and closing of the fill light
  • Rich hardware interface (I/O, WG26, WG34, RJ45, USB)
  • 8-inch IPS full-view HD display, no streaking and delay
  • Support automatic gain control and automatic white balance
  • 3D noise reduction and fog-passing technology makes the monitoring picture under low illumination  more clear and delicate
  • Support code stream and I frame interval setting
Specifications Human Body Temperature Measurement Real Time Face Recognition Terminal:



Model

B2002FR-8I-CM-BTM-L06(With Column bracket)

B2002FR-8I-WM-BTM-L06(With Wall bracket)

Hardware
ProcessorDual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
Operating systemLinux Operating system
StorageSupport TF card storage
Viewing angleVertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor1/2.8″ Progressive Scan CMOS(IMX307)
Lens6mm
Speakervoice playback content can be customized
Temperature measurement performance
Measurement range16℃ – 40℃ (Indoor without wind)
Temperature measurement

Lens





European original lens

Sensors typeGerman Array Sensors
Lens FOV33°
Measurement accuracy±0.4℃



Temperature resolution0.1℃
Temperature measurement distance≤80cm
Measurement response time300ms
Performance
Recognition height1.2~2.2 meters, angle adjustable
Recognition distance0.3~1.5 meters, depends on lens
Recognition timeLess than 0.5 seconds
Storage capacity160,000 capture records
Face capacity24000pcs
Screen brightness≥400 cd/m2
Interface
Switching output1 way switch output,other GPIO port can be customized
Network interface1 RJ45 10M / 100M adaptive Ethernet port,Gigabit Ethernet port can be customized
Wiegand interface1ch Wiegand interface input/output
RS485There is an RS485 interface on the PCB board, but no lead
USB interface1ch USB interface
Camera
CameraDual cameras
Effective pixels2MP, 1920*1080
Min IlluminationColor 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR≥50db(AGC OFF)
WDR100db,ISP algorithm face partial exposure
Function
Web side configurationsupport
remote upgradesupport



Regular
Working humidity0~90% relative humidity, no condensation
Salt spraylevel Rp6 or above
Antistaticcontact ±6KV, air ±8KV
PowerDC12V/2A , 14.4W(MAX)
Column aperture36mm
Equipment size252 (L) * 136 (W) * 26 (T) mm
Screen size8 inches IPS HD screen
Weight1.7 kg
Email us at info@ampletrails.com or call us at 9818390836, 09818390836, 9315441078 for pricing and installation of this solution.
