eSSL MULTI DOOR ACCESS CONTROL 4 DOOR Controller

eSSL MULTIDOOR ACCESS CONTROL – 4 DOOR Controller
essl access control panel latest model.
eSSL-Access-8004

essl 4 door controller price

Access Control Door Controller

ESSL-ACCESS-8004 MULTIDOOR ACCESS CONTROL – 4 DOOR



Multi Door Access Control System

  • Card Capacity : 20,000,
  • Event buffer : 1,00,000
  • Communication : TCP/IP 10M/100M adaptive,
  • Function Description: Control 4 doors, enter via cards swiping, and exit via buttons
  • PCB board size : 21.9 * 12.2 * 3.4cm.

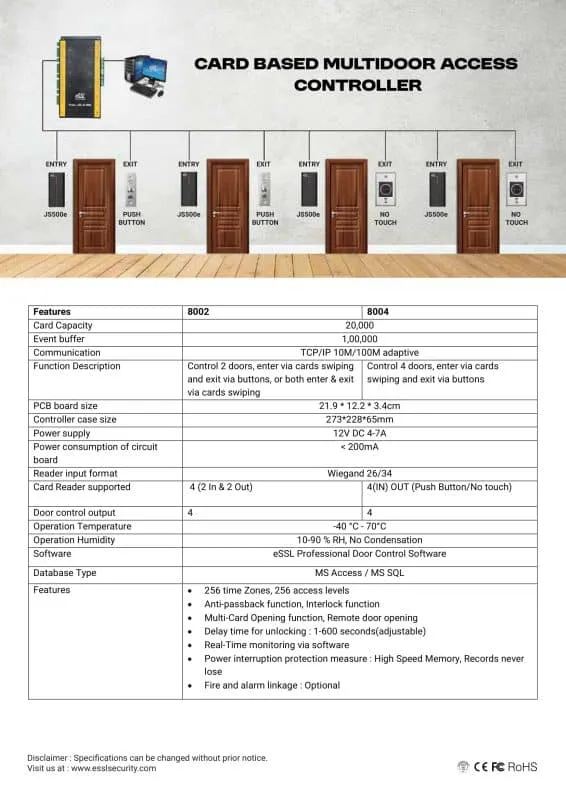

TECHNICAL SPECIFICATIONS

  • Card Capacity : 20,000
  • Event buffer : 1,00,000
  • Communication : TCP/IP 10M/100M adaptive
  • Function Description: Control 4 doors, enter via cards swiping, and exit via buttons
  • PCB board size : 21.9 * 12.2 * 3.4cm
  • Controller case size : 273*228*65mm
  • Power supply : 12V DC 4-7A
  • Power consumption of circuit board : < 200mA
  • Reader input format : Wiegand 26/34
  • Card Reader supported : 4
  • Door control output : 4
  • Delay time for unlocking : 1-600 seconds(adjustable)
  • Operation Temperature : -40 °C – 70°C
  • Operation Humidity : 10-90 % RH, No Condensation
  • 256 time Zones, 256 access levels
  • Anti-passback function
  • Interlock function
  • Multi-Card Opening function, Remote door opening
  • Real-time monitoring via software Power interruption protection measure: High Speed Memory, Records never lose
  • Max Distance between Controllers: TCP/IP communication
  • Fire and alarm linkage: Optional

The eSSL Multi Door Access Control 4 Door Controller is an advanced access control system that is designed to manage access to multiple doors. This system is ideal for businesses, offices, and other organizations that need to secure multiple entry points.

The 4 door controller is capable of controlling up to 4 doors, it can be connected with different types of readers such as Fingerprint, RFID, Proximity, and Smart Card readers. This allows organizations to choose the type of reader that best suits their needs, whether it’s a traditional card reader or a more advanced biometric reader.

The system also includes a built-in web server, which allows users to access the system remotely and manage access control settings from any location. This feature allows users to easily manage access rights, add or remove users, and monitor activity logs from a single interface.

The 4 door controller also has a built-in real-time clock, which allows for the setting of time schedules for access control. This feature allows organizations to restrict access to certain areas during specific times of the day, such as after-hours or weekends.

The 4 door controller also includes a built-in alarm system that triggers when an unauthorized entry is attempted. This feature helps to deter intruders and provides an additional layer of security.

essl 4 Door Controller

SOFTWARE AND DATABASE SUPPORTED

  • eSSL Professional Door Control Software
  • Database Type:- MS Access / MS SQL1

Email us at info@ampletrails.com or call us at 9034757673 for pricing and installation of eSSL MULTI DOOR ACCESS CONTROL – 4 DOOR.

In conclusion, the eSSL Multi Door Access Control 4 Door Controller is an advanced access control system that is designed to manage access to multiple doors. It is capable of controlling up to 4 doors, it can be connected with different types of readers such as Fingerprint, RFID, Proximity, and Smart Card readers. It includes a built-in web server, which allows users to access the system remotely, a built-in real-time clock, and a built-in alarm system that triggers when an unauthorized entry is attempted. It is an ideal solution for businesses, offices, and other organizations that need to secure multiple entry points.
