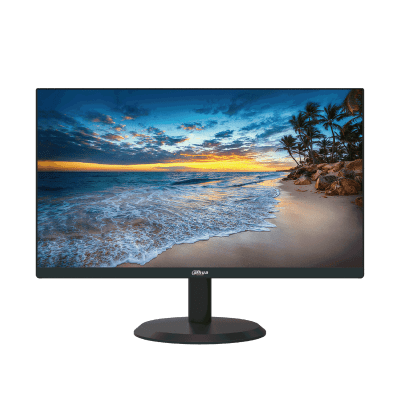

Dahua DHI-LM22-H200 21.45” FHD Monitor

Dahua DHI-LM22-H200 21.45” FHD Monitor

Dahua DHI-LM22-H200 21.45'' FHD Monitor

Dahua DHI-LM22-H200 21.45” FHD Monitor

LM22-H200

21.45” FHD Monitor

> Suitable for continuous 24/7 operation
> Ultra-thin body with metal housing;
> Micro bezel design, elegant appearance, ultra-light base;
> 6.5ms fast response time with no image blurring or ghosting
> 178°H/178°V extra-wide viewing angle for overall viewing performance;
> Support multiple signal inputs including HDMI and VGA;
> Low energy consumption, long service life;

DHI-LM22-H200-Datasheet

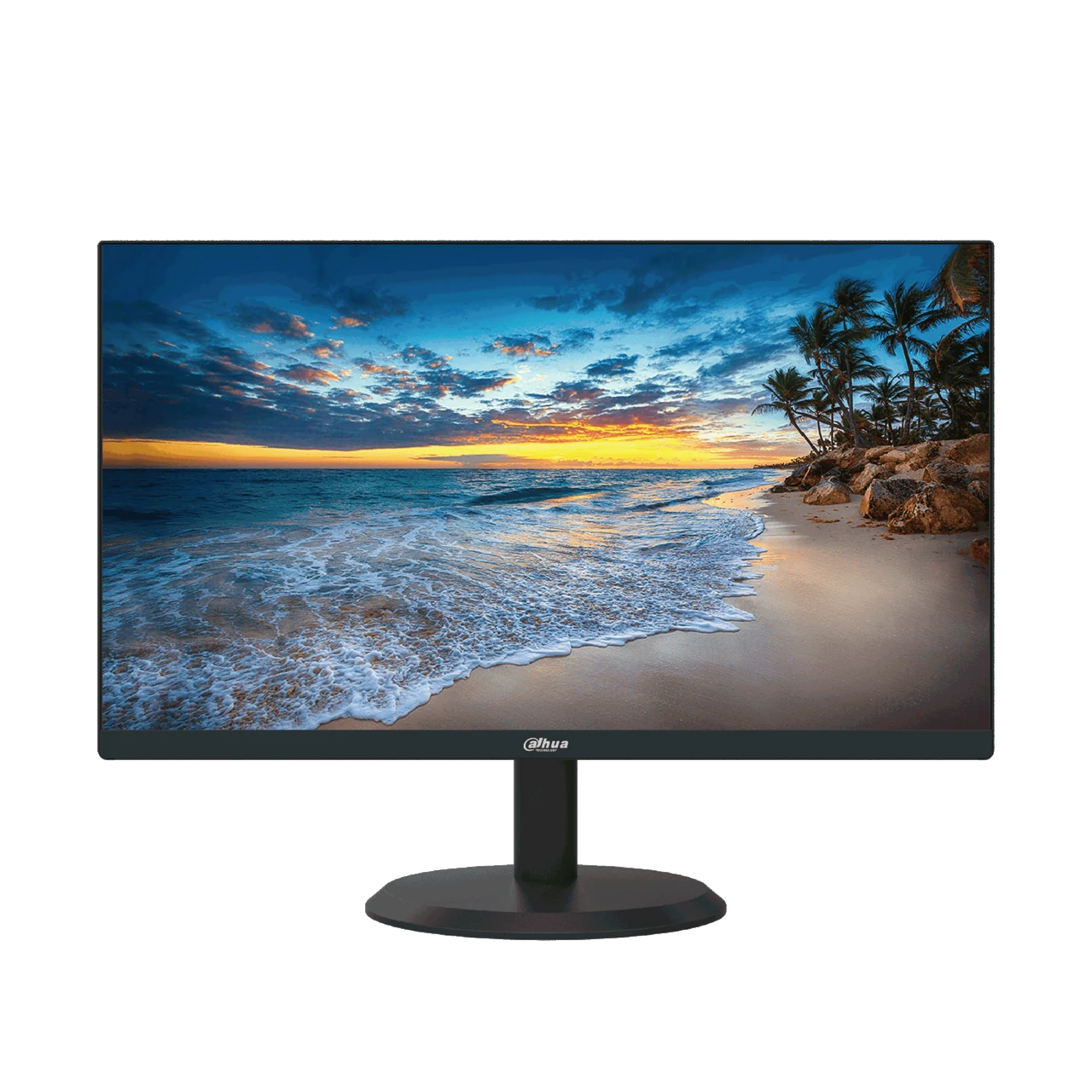

Dahua FHD Monitor DHI-LM22-H200-

Dahua FHD Monitor DHI-LM22-H200-

Product Selector

Model

Model

DHI-LM22-H200

Display

Screen Size

21.45″

Aspect Ratio

16:9

Resolution

1920×1080 (FHD)

Backlight

W-LED

Brightness/Luminance

250 cd/

Contrast

3000:1

Display Color

16.7M(8bit)

Viewing Angle(H/V)

178°(H)/178°(V)

Response time(typ.)

6.5ms

Refresh Rate

60 HZ

Signals

Input

VGA×1, HDMI×1,Audio In

Speaker

1.5W×2

General

Power Supply

12Vdc2A

Consumption (Standard)

24W

Consumption (Standby)

≤0.5W

Net Weight

2.1kg (4.63lb)

Gross Weight

3.3kg (7.28lb)

Wall Mount

75×75mm (3.0″×3.0″)

Dimension without standard (L×H×W)

491.7x38x285.1mm (19.4“x1.5”x11.2”

Package(L×H×W)

548×108*355mm (21.6“x4.3”x14.0“

Work Environment

Temperature

0~40℃ (32°F~104°F)

Humidity

10%~85%

Accessory

Standard

HDMI cable, power cable, Pedestal

Optional

Hanging bracket

Certifications

Certifications

CE/FCC

Email us at info@ampletrails.com for your requirements for the best quality FHD monitor.
