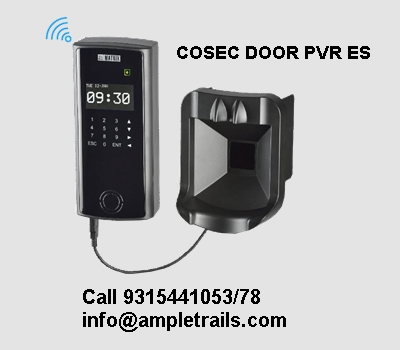

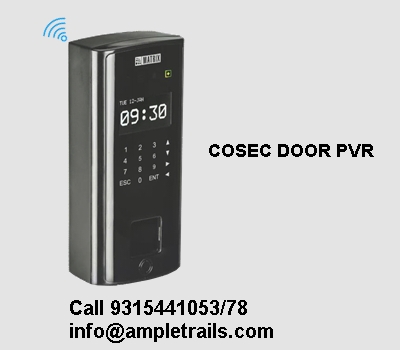

COSEC DOOR PVR

Matrix COSEC DOOR PVR uses the infrared light to map the unique vein structure of your palm, capturing over millions of data points! This unique feature makes it one of the most advanced biometric Door Controllers available in the market. Choose Matrix for simple yet highly secure and reliable solutions!

cosec door pvr

APPLICATIONS
Palm Vein and RF Card based Door Controller with Wireless Connectivity

Palm Vein and RF Card based Door Controller with Wireless Connectivity

Time- attendanceTime Attendance

Access ControlAccess Control
Visitor managementVisitor Management contract workers managementContact Workers Management
Palm Vein Based Time Attendance System

Vein Recognition Access Control

KEY FEATURES

contactless technology

Contactless Technology

  • Biometric Palm Vein Scanner
  • Reads Vascular Pattern of the Palm
  • Minimizes Hygiene Concerns
  • Fujitsu’s Palm Vein Sensor

higher capacity

Higher Capacity to Manage Users and Events

  • 20,000 Palm Templates
  • 1,00,000 Events Buffer
  • 10,000 User

faster access and higher security

Faster Access and Higher Security

  • 1:1, 1:N and 1:G Verification
  • Faster Identification through Server
  • Tamper Detection

multiple connectivity

Multiple Connectivity Options for Communicating with Server

  • Ethernet
  • Built-in Wi-Fi
  • Mobile Broadband (3G/4G)

choose credentials as per requirements

Choose Credentials as per Requirement

  • Palm Vein, Card and PIN
  • Proximity and Smart Card
  • EM Prox, HID iCLASS, HID Prox and Mifare

multiple interfaces

Multiple Interfaces for Different Types of Applications

  • Door Relay and Door Sense
  • Auxiliary Input and Output Ports
  • Exit Reader and Exit Switch

user friendly design

User Friendly Design

  • Dot Matrix LCD
  • Touch Sense Keypad

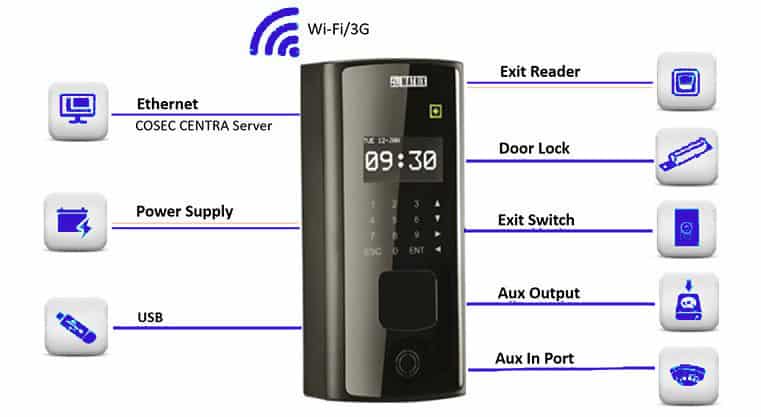

INTERFACE DIAGRAM
cosec-door-pvr
TECHNICAL SPECIFICATIONS
Credential Support Palm, Card and PIN
Display 128 x 64 Dot Matrix Display
Keypad 16 Touch Sense Keys
User Capacity 10,000
Template Storage Capacity 20,000
Template Per User Up to Two Palms
Cards Per User Up to Two
Types of Cards Support EM Prox, HID iCLASS and Mifare (Card Module Required)
Event Buffer (Storage Capacity) 1,00,000
Mobile Broadband Yes (3G/4G Support)
Wi-Fi Yes (802.11 b/g/n)
Ethernet Yes (10/100 Mbps on Ethernet)
Exit Switch Yes
Door Status Sense Programmable NO, NC and Supervised
Door Lock Relay Form C, SPDT Relay (Max 2A@30 VDC)
Door Lock Power Internal 12VDC @ 0.5A or External
Aux-IN Programmable NO, NC and Supervised
Aux-OUT Form C and SPDT Relay (Max 2A@30 VDC)
Reader Interface types RS 232 sand Wiegand IN/OUT
Reader Types 1 Port for Card Reader/Third Party Wiegand Reader
USB 2 USB Ports (1 for Data Transfer/External Sensor Connectivity and 1 for 3G/4G Dongle)
LED 4 LEDs (Status, Alarm, Allowed, Denied)
Buzzer Yes
CPU 1 GHz ARM Cortex A8 based Processor
Flash Memory 256MB Flash
RAM Memory 512 MB DDR3 RAM
Input Power 12VDC @ 2A
Battery Backup No
Reader Power Output Internal 12VDC @ 0.5A or External
Humidity 5% to 85% RH Non-condensing
Tamper Detection Yes
Operating Temperature 0°C to + 50°C (32°F to 122°F)
Get the COSEC DOOR PVR Time Attendance System for your organization. For more information fill the following form contact us at 91-9315-4410-53, +91-9315-4410-78WhatsApp 9315441053 or email us at info@ampletrails.com.
