 Swing Barrier SBTL8033  As the number of cases has been increasing and the geographical spread has been widening, the novel coronavirus outbreak has raised grave concerns about public health and personal hygiene.

It is proven that most germs are spread with our hands. Thus, a touchless entrance control solution effectively reduces the risk of the spread of infection in your premises and public areas.

New Swing Barrier Turnstile – SBTL8033
Body Temperature Mask Detection Entrance Control Solution

Body Temperature Mask Detection Entrance Control Solution

  • Wide Pose Angle Acceptance
  • Body Temperature
  • Proactive Palm Recognition
  • Masked Face

AmpleTrails launches a professional Touch less Entrance Control Solution with Body Temperature & Mask Detection Swing Barrier – SBTL8033

These can also be integrated with turnstiles, flap & swing barriers. Touch less entry system with Face / Mask & Fever recognition.

  • ✅ Wide Pose Angle Acceptance
  • ✅ Body Temperature
  • ✅ Proactive Palm Recognition
  • ✅ Masked Face Recognition

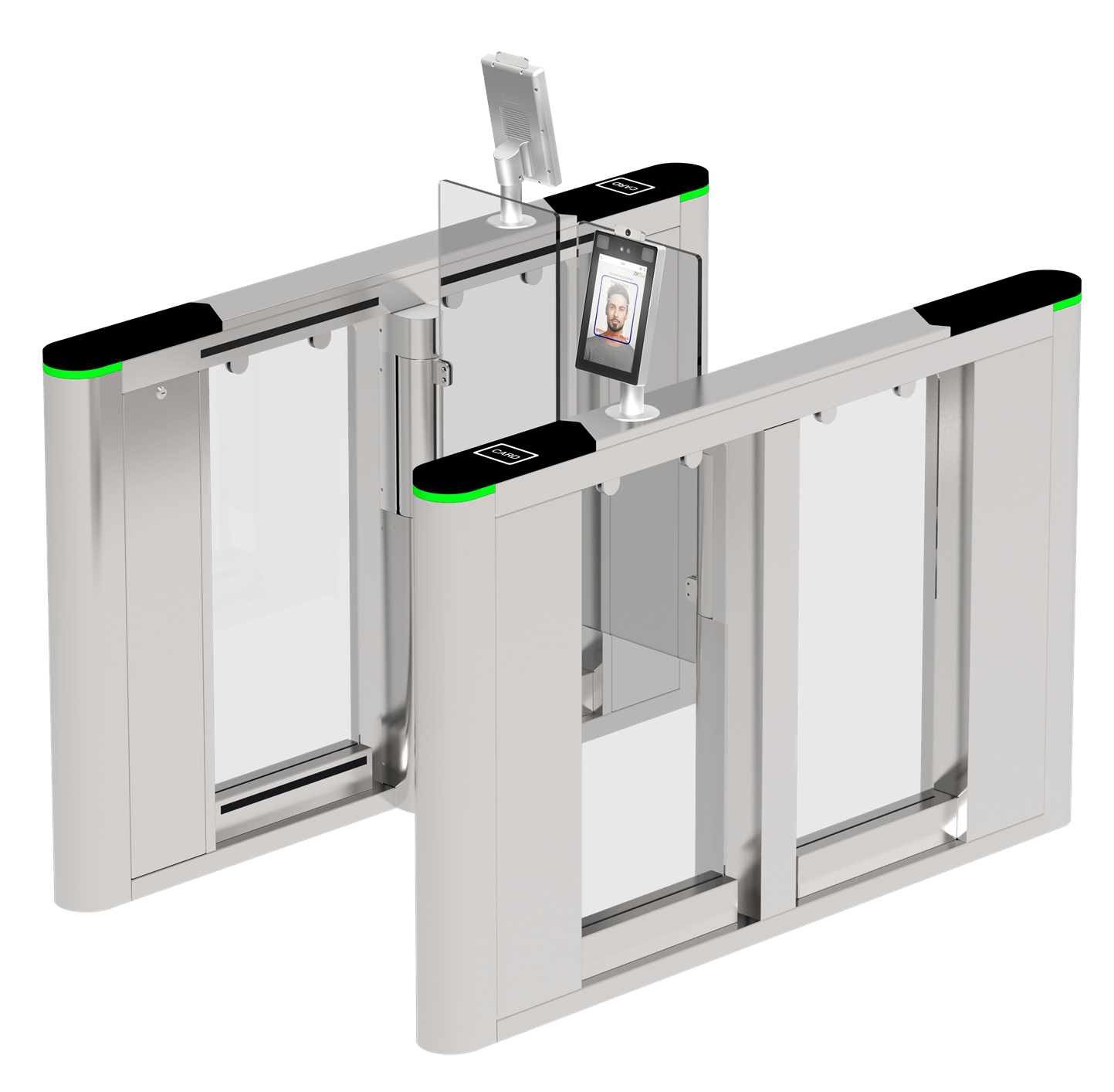

SBTL8033 is a Touchless Indoor Speed Gate-based entrance control solution with body temperature detection functions. The device consists of SUS304 stainless steel body for long-term usage and the barrier panels are made of acrylic for better aging resistance and impact resistance. The barrier is designed to match with indoor architecture and the transparent panels offer an elegant look.
The entrance control system is integrated with advanced ZK facial recognition terminals featured with computer vision technology and smart facial recognition algorithms for masked-facial recognition. In addition, the device combines visible light facial recognition technology with infrared temperature detection for accurate and fast body temperature measurements during user-verification.
The entrance control system can be extremely helpful to facilitate the public in heavily crowded places such as hospitals, industrial areas, schools, public facilities, IT parks, etc as well as in reducing the spread of infections and germs.

Features of Body Temperature Mask Detection Entrance Control Solution

  • Touch-free user identification
  • Promotes safety & hygiene
  • Fast & accurate verification at a wide range of angles
  • Body temperature detection & masked-facial recognition
  • The instant response of barrier panels upon successful authentication
  • 10 pairs of infrared sensors for stronger tailgate detection
  • Sturdy design with SUS304 stainless casing
  • Bi-directional operation control
  • LED direction indicator
  • Uninterrupted exit to safety during a power failure or emergency

Parameter Body Temperature Mask Detection Entrance Control Solution

Power Requirements AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working Temperature -28°C ~ 60°C
Working Humidity 20% – 95% (Non-condensing)
Working Environment Indoor
Max. Speed of Throughput 40 people per minute
Lane Width (mm) 660
Dimensions (L*W*H) 1600 * 1040 * 1200 (mm)
Packing Dimensions (L*W*H) 1700 * 300 * 1130 (mm)
Net Weight (kg) 130kg
Weight with Packing (kg) 150kg
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel & Acrylic
Barrier Material Acrylic
Barrier Movement Swing
Emergency Mode Supported
Face Capacity 30,000 (1:N) / 50,000 (Optional)
Compatibility 900 MHz Dual Core Customized CPU
512MB RAM / 8G Flash
8″ High Brightness (400lux) IPS Touch LCD
2MP WDR Low Light Camera
IP68 & IK04
Dimensions of Facial Recognition Device (H*L*D) 227 * 143 * 26 (mm)
Facial Recognition Distance of Masked Individuals 3m
Temperature Deviation +/- 0.5 degrees
Body Temperature Detection Distance 25cm – 50cm
Body Temperature Detection Speed >0.3s
Temperature Selection Posture Angle Tolerance +/-30 degrees
  • Fast and accurate visible light facial recognition with wide-angle tolerance for masked individuals
  • Body temperature detection
  • Instant facial recognition in 0.3s
  • Servomotor – faster gate opening speed
  • 10 pairs of infrared sensors for stronger tailgate detection
  • SUS304 stainless casing
  • Higher durability for longer product life cycle
  • Bi-directional operation control
  • LED passage indicator along the lane
  • Convenient installation and maintenance
  • Various optional panels
  • The emergency mode allows free access in case of power failures or emergency

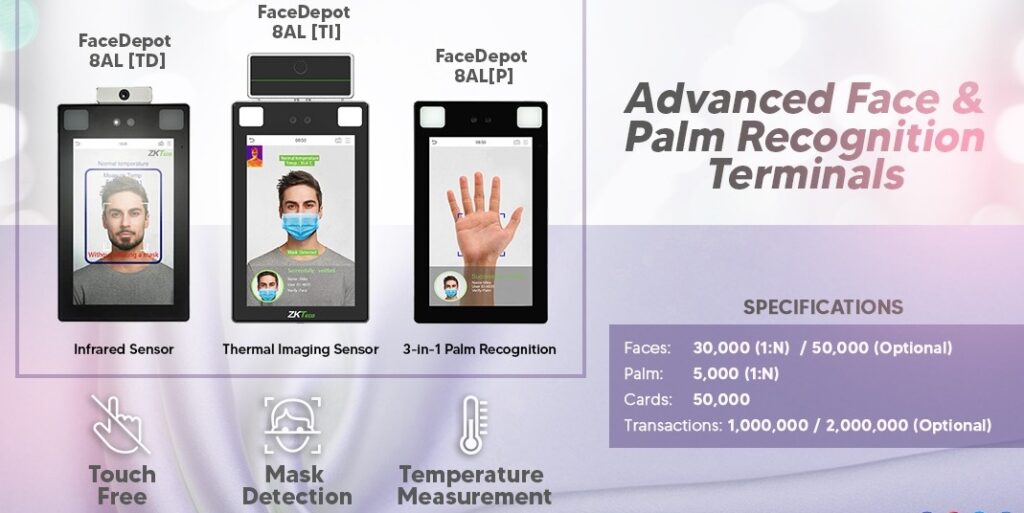

Face Palm Recognition Terminals

Face Palm Recognition Terminals

If you have any query or want to place an order please contact us now at 9315441053, 9034757673 or email us at in**@am*********.com

Email us at in**@am*********.com or call us at 9034757673, 9315441078 for pricing and installation of this machine.
