Biometric Time and Attendance Machine SF100 eSSL

Biometric Machine for Attendance eSSL SF100

Biometric Machine for Attendance eSSL SF100

 SF100+id (Access control + Wiegand)

Biometric Time and Attendance Machine SF100 is an IP based fingerprint terminal work both in network and standalone mode and it works with essl software for access control and time attendance applications. Wiegand output makes SF100 flexible to connect with eSSL or any 3rd party controllers as a slave reader, additionally wiegand input allows two SF100 to configure with each other and realize Master & Slave solution that requires user verification at both entrance and exit, meanwhile anti-passback function could be achieved to maximize security level. Auxiliary input interface allows SF100 to connect an external source as smoke detector or emergency switch and enable a relevant linkage in the machine menu, the device would generate an alarm signal or open the door at the same time, this linkage functon is very useful for fire emergency etc. If you have any query or want to place an order please contact us now at 9315441078 WhatsApp 9315441053, 9818390836 or email us at info@ampletrails.com

Time Attendance Machine SF100 eSSL

Time Attendance Machine SF100 eSSL

eSSL SF100 Fingerprint Time Attendance and Access Control System

When your company is growing then you should implement Biometric Time and Attendance Machine SF100 eSSL with Access Control System. With Access Control Solutions like this, you need not maintain physical keys. Your Biometrics fingerprint, RFID Card and PIN is your Key.

  • The sf100 is an ip based fingerprint terminal work both in network and standalone mode and it works with essl software for access control and time attendance applications
  • Wiegand output makes sf100 flexible to connect with essl or any 3rd party controllers as a slave reader, additionally wiegand input allows two sf100 to configure with each other and realize
  • Master & slave solution that requires user verification at both entrance and exit, meanwhile anti-passback function could be achieved to maximize security level
  • Auxiliary input interface allows sf100 to connect an external source as smoke detector or emergency switch and enable a relevant linkage in the machine menu
  • The device would generate an alarm signal or open the door at the same time, this linkage functon is very useful for fire emergency etc
  • Support: electric lock, door sensor, alarm, exit button, door bell, aux. Input: 1ea for linkage function, wiegand signal: wiegand input & output
  • Communication: TCP/IP, RS485, USB-host, operating humidity: 20% – 80%
This small and compact Access Control Solution is best for your server rooms. With this kind of Access Control Solutions, you have complete control over who is allowed to enter.
Essl Biometric Time And Attendance Machine, SF100

Essl Biometric Time And Attendance Machine, SF100

Access Control Solutions are very secure. Keys can be duplicated very easily but not your card.

Do you want to use the latest technology on this planet in your organization? You must have already spent a lot of money on computers, networking equipment. Now its time to upgrade to the latest Access Control System.

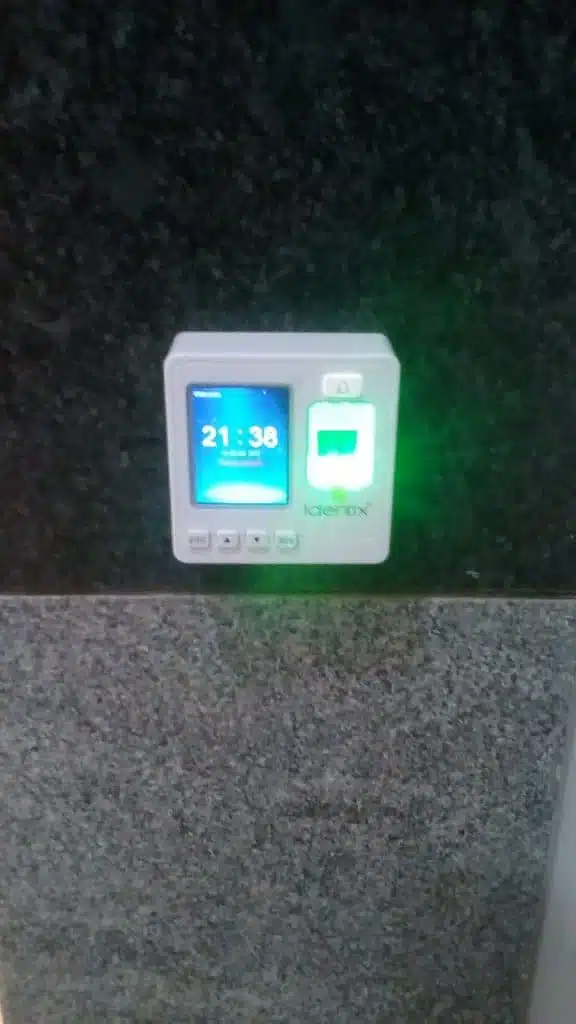

essl SF100 Fingerprint Access Control Device

essl SF100 Fingerprint Access Control Device

eSSL SF 100+id (Access control + Weigand)
Fingerprint Capacity : 1500
Card Storage : 5000
Transaction Storage : 80,000

Smallest Professional Access control with Attendance

Fingerprint Time Attendance Access Control System eSSL Identix SF100

Fingerprint Time Attendance Access Control System eSSL Identix SF100

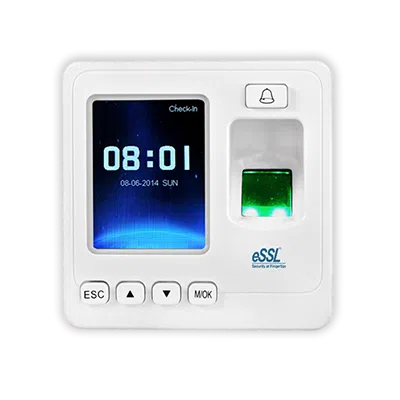

The SF 100 is a device for access control and time and attendance that has TFT LCD screen 2.4 “. It has a fingerprint reader and 4 control keys for easy and intuitive operation. It also has a practical and elegant design. It supports management software eTimeTracklite and Smart Office. The SF 100 is a device for access control and time and attendance that has TFT LCD screen 2.4 “. It has a fingerprint reader and 4 control keys for easy and intuitive operation. It also has a practical and elegant design. It supports management software eTimeTracklite and Smart Office.

Feature of eSSL SF100 Specification
Users 1500 Fingerprints
Transaction80,000 Logs
Card Storage5000
Display2.8″ Color TFT
CommunicationUSB-host , TCP/ IP, RS 485
Dimension (W XH X D)90x90x34.5 mm
FAR<= 0.0001
FRR <= 1%
Identification Speed <= 1sec
Power Supply12 V DC
Operating Temperature 0°C – 45°C
Operating Humidity20% – 80%
FeatureSpecification
Schedule BellYes
WeigandYes ; In & Out
Auxiliarry InputOnly Input
Access ControlYes
Support Exit ReadersKR500 ; EM Locks ; Door Sensors; Alarm ; Door Bell ; Exit Button
SSRNO
Download

SF100 Brochure

Compact Professional Access Control with Exit RFID Card Reader Connectivity

eSSL SF100 Fingerprint Time Attendance and Access Control System

eSSL SF100 Fingerprint Time Attendance and Access Control System

Professional Access Control with Attendance System

The SF 100 is a device for access control and time and attendance that has TFT LCD screen 2.4 “. It has a fingerprint reader and 4 control keys for easy and intuitive operation. It also has a practical and elegant design.

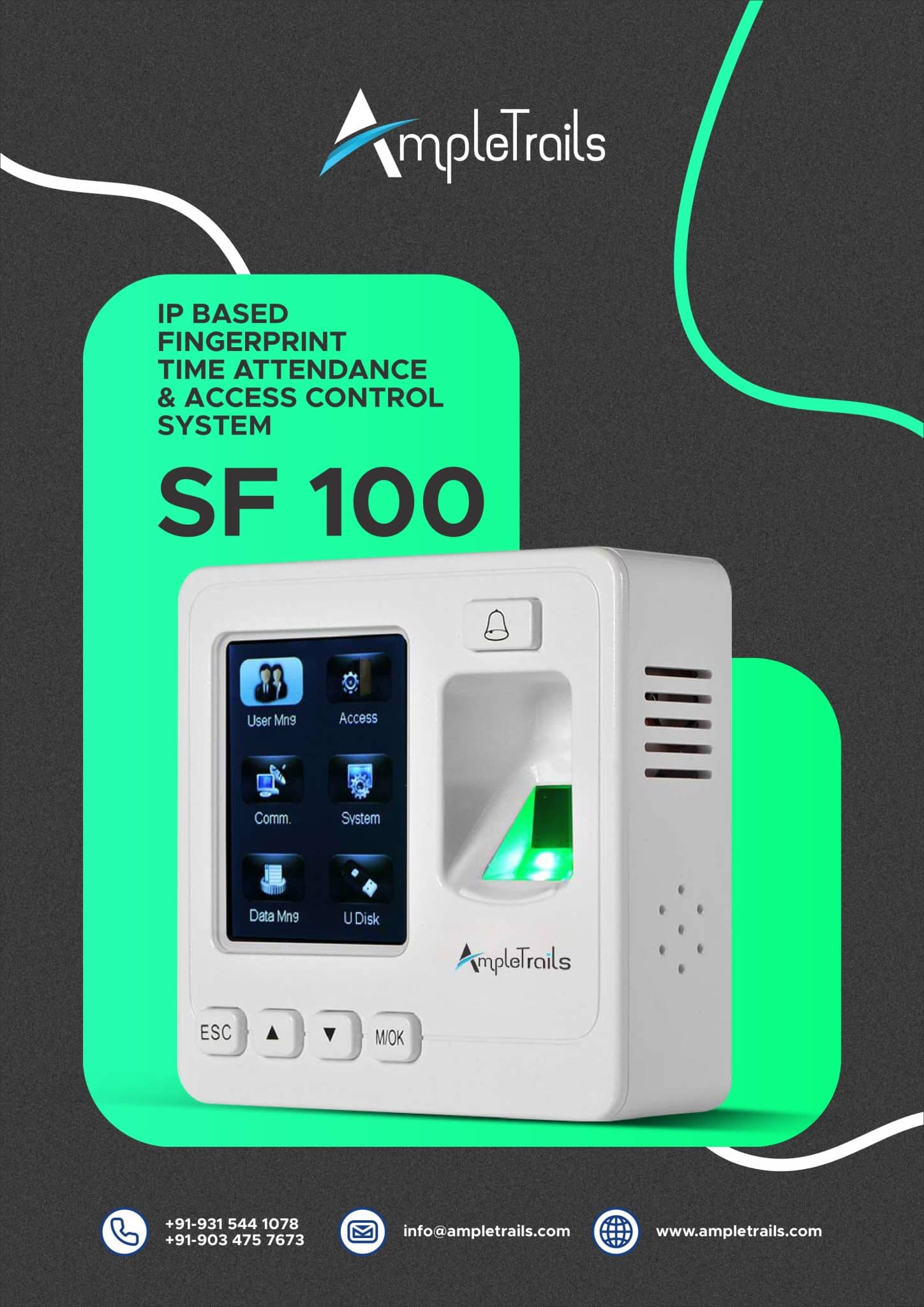

Biometric Time and Attendance Machine SF100

Time Attendance with Access control eSSL SF100

IP BASED FINGERPRINT TIME ATTENDANCE AND ACCESS CONTROL SYSTEM

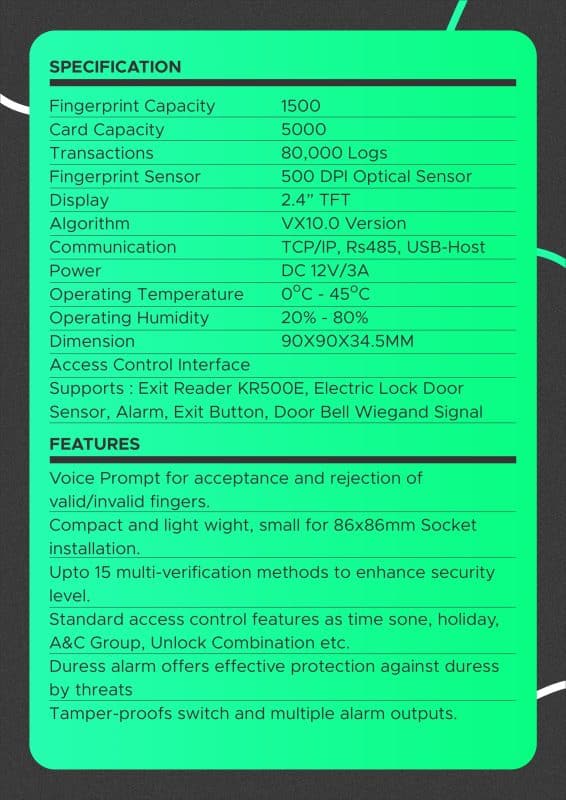

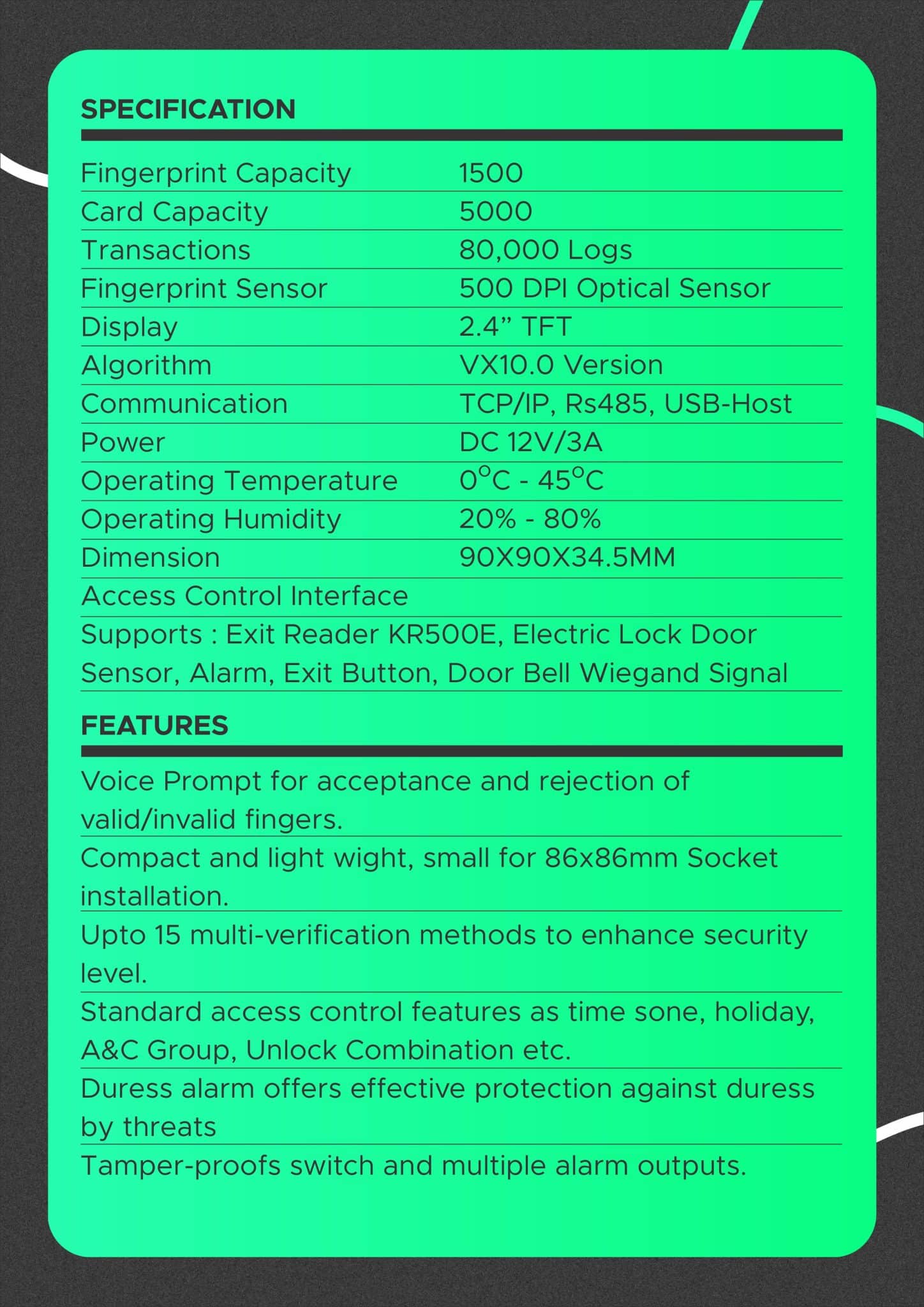

Specifications of Time Attendance with Access control eSSL SF100
Fingerprint Templates1500
Transaction Storage80,000
Card Capacity5,000
Card ReaderYes
CPU32 bit microprocessor
