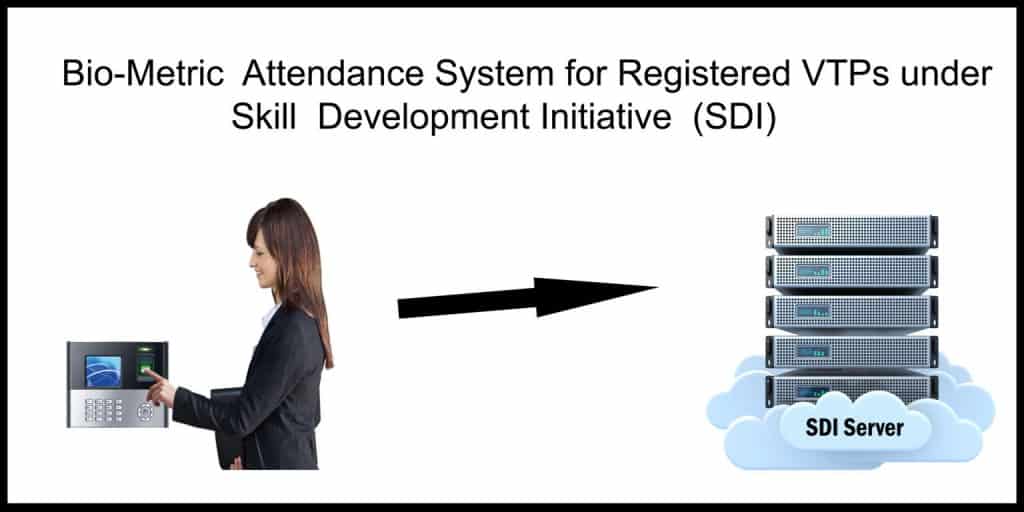

Biometric Machine VTP Centres : VTP (Vocational Training Provider) Centres under SDI Schemes need to install Biometric Time & Attendance Machine for the VTP authorized under SDI Scheme. As per the rules of SDI each and every VTP Centre have to implement biometric time and attendance machine for the attendance of the students who all are getting coaching from their VTP Centre. SDI has instructed that the attendance will be uploaded directly to the SDI Server. AmpleTrails is providing biometric time and attendance machine which is according to the specifications required for the VTP Centre authorized by SDI. VTP Centres are instructed to get this machine installed by 31st January, 2015. AmpleTrails will provide biometric time and attendance machine to VTP Centres authorized under SDI Scheme at very reasonable price. VTP Centres have to upload attendance directly to the server of SDI.
AmpleTrails is providing biometric time and attendance machine which is according to the required specifications. VTP just need to install the device and they can easily mark the attendance of their students. After marking the attendance over device the attendance will be directly uploaded to the SDI server.

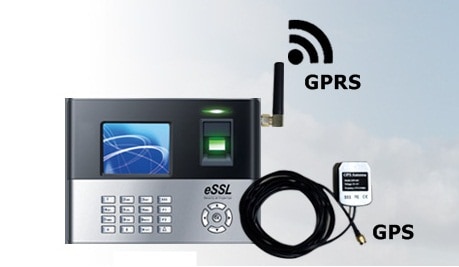

Fingerprint Based Time and Attendance Machine
Fingerprint Based Time and Attendance/Access Control system
Face Recognition System for attendance
Face Recognition System/Time and Attendance / Access Control Machine
Proximity and Mi-fare
Proximity and Mi-fare
Automatic School Bell Multiple Sound
Automatic School Bell
Features of Biometric Machine VTP Centres Devices:
- Fully Standalone Device (No Need Of Any Computer or Software)
- Complete Match With All DGET Norms
- STQC Certified Sensor
- On Device Reporting
- 7 Inch High Resolution Touch Screen
- Easy To Use
- English / Hindi Voice Prompt
- Both Mounting (Table Top + Wall Mount)
- Excel Report Generated Direct In Machine No Need Of Computer
- Fastest Fingerprint Matching
- DGE&T Approved Supplier
Specifications of Hardware required:
- Biometric Sensor and Extractor : All the parameters of Biometric Devices for Authentication should be as per latest STQC scheme for certification of UIDAI biometric Devices (Authentication). STQC certified sensor and extractor only.
- Processor: 32- bit, ARM-9/x86 equivalent of higher, 400 MHz of higher frequency
- RAM: RAM 128 of higher, FLASH 256 MB or higher
- Fingerprint Storage : Memory capacity to store fingerprints >0 3000
- Transaction Storage : Memory capacity to store device operation logs>=100000
- Add on Memory : Micro SD Slot minimum 4 GB or more
- Keypad : Minimum 16 key alpha numeric keypad with navigation keys, key size to be large enough for navigation, or on screen key pad of Qwerty keypad.
- OS/Software : equivalent support & SDK for 3rd party application development
i. Linux 2.6 or higher
iv. Any other equivalent OS
- Ports : USB 2.0 or higher -1 or more nose, RJ 45 (Ethernet)/ wifi
- Language Support : Unicode support for all Indian language including English
- Status Indications : Multi colour LED’s / LCD (to indicate network connection, signal strength to indicate battery charge remaining etc) or on screen display to all indicator like battery charger network strength etc.
- Other Indicators : Audio/ visual capability, A/V indication either at device level or at application level for Indication various events like
a) Indicating for placing finger
b) Start of capturing
c) End or capturing
- Connectivity : Two channels or connectivity are mandatory for devices, first connectivity as GPRS is mandatory. Second connectivity can be through wifi b/g/n/ fixed broadband
e.g. GPRS + broadband, GPRS + wifi etc.
- Non Volatile Storage : Must be capable of storing audit trails of at least 1000 transactions
- Display : Minimum 3.5” screen or higher, with at least 262k colors TFT
- Battery Backup : Minimum 4 hours battery backup
- Antenna : Internal, External / Extended External Antenna
- Power Adaptor : AC/ DC adaptor with
- Environment : Storage not including battery 0’C to 55’ c Operating temp 0’ C to 50 ‘C
- Humidity : 10-90 % RH Non-condensing
- Speaker : A facility should be provided for voice confirmation of the transaction, 1W or more
- Other Accessories : Durable carry case, multilingual user manual (English, Hindi) screwdriver, damper a white cloth (45 cm * 45 CM)
- Other Features : External accessible slots for SIM and SD Cards
- Support : Complete cover support with breakage replacement for a period of three years.
- Security : 2048 –bit, PKI 256 – bit AES, Base 64, SHA- 256 (optional)
- GPS : Industry standard 16 channel NMEA compliant GPS Support
- NFIQ Qualify Software : Inbuilt NFIQ quality software either at device level or extractor level to check the quality of fingerprint during enrolment Enrolment client application
