Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller

Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller with support of push data. Biometric Access Control Systems uses face, vein, fingerprint, RFID cards, proximity cards used for physical access control management. Its a 4 door controller. Fingerprint based Access Control System are considered best for physical access control management.

InBio-460 Pro Multidoor Access Controller

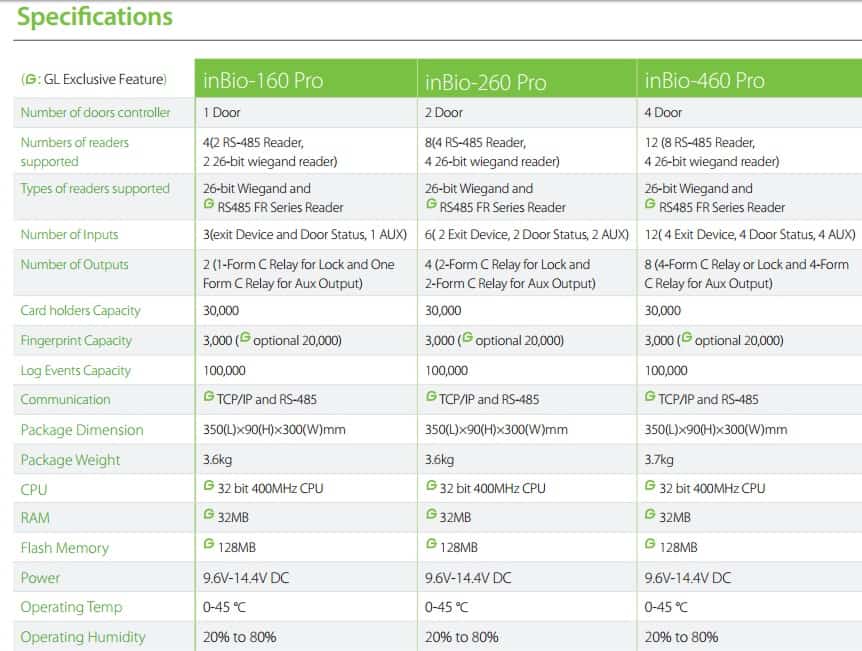

Biometric Access Control Systems Specifications Comparision Between inBio Pro series

Access Control Systems Specifications Comparision Between inBio Pro series

Features Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller
Embedded Fingerprint verification and advance
access control function
It can be installed easily on your network also
support TCP/IP and RS485 communication
1/2/4 Door models can be mixed and matched in
an optimised System Architecture
Data is preserved if power is lost, Controller
continues to operate if data connection is interrupted
Anti-Passback, First-Card Opening, Multi-Card Opening
Duress Password Entry, and Auxilary input/output
linkages are inbuilt into controller firmware

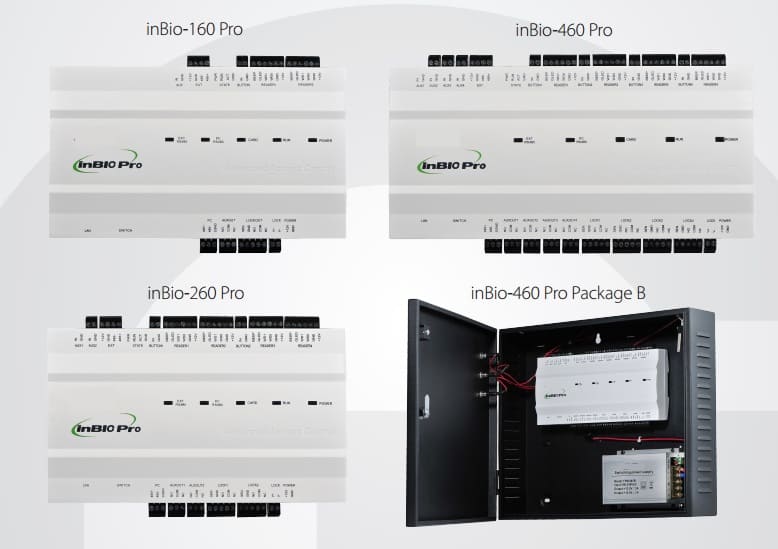

InBio460 Pro Package access control systems Packaging

InBio460 Pro Package access control systems Packaging

Biometric Multidoor Access Controller

Feature of Biometric Access Control Systems InBio-460 Pro Multidoor Access Controller
Fingerprint Capacity3000
Log Events Capacity100,000
Card holders Capacity30,000
CommunicationTCP/IP and RS-485

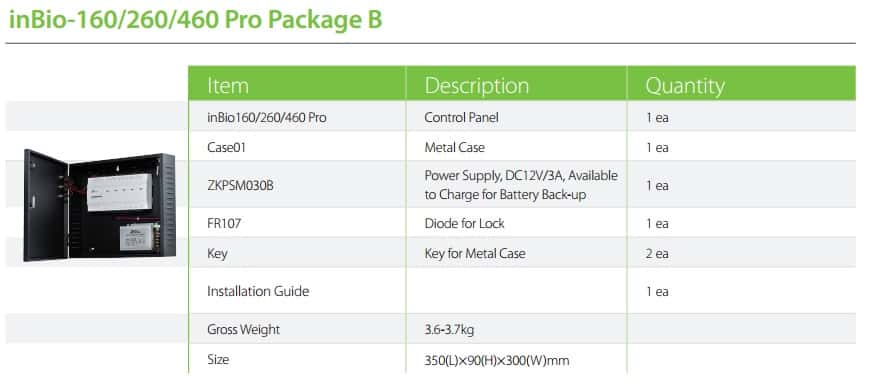

InBio460 Pro Package access control systems india

InBio460 Pro Package access control systems india

Specification
Number of doors controller4 Door
Numbers of readers supported12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported26-bit Wiegand & RS485 FR Series Reader
Number of Inputs12( 4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs8 (4-Form C Relay or Lock & 4-Form C Relay for Aux Output)
Card holders Capacity30,000
Fingerprint Capacity3,000 ( optional 20,000 )
Log Events Capacity1,00,000
CommunicationTCP/IP and RS-485
Package Dimension350(L)×90(H)×300(W)mm
Package Weight3.7kg
CPU32 bit 400MHz CPU



access control systems installation essl multi door access control system

access control systems installation essl multi door access control system

Still not able to decide? Email us at info@ampletrails.com or call us at 9315441078 WhatsApp 9315441053, 9818390836 for pricing and installation of this machine. Our experts will help you in deciding the best solution according to your requirement.
