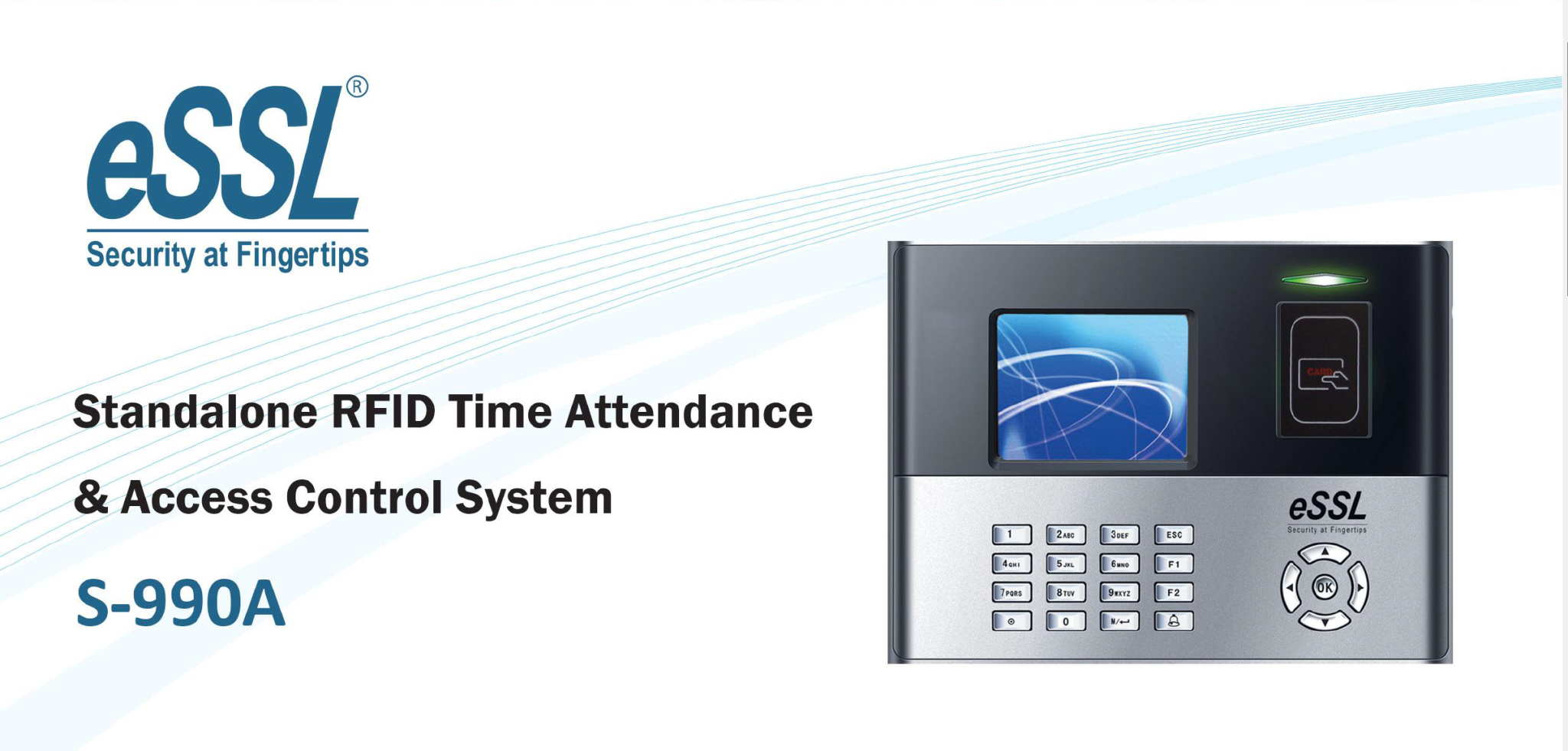

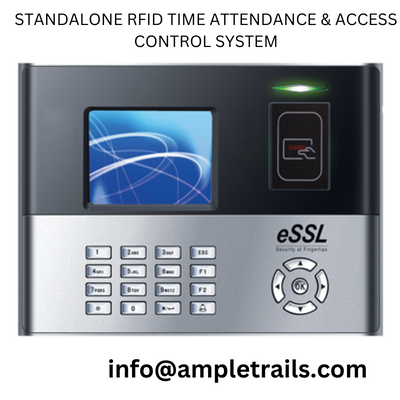

Access Control S990A

Access Control S990A is a RFID identification T&A and access control terminal which has a capacity of 10,000 cards and 1, 00,000 transaction logs with fastest identification speed of less than or equal to 0.1 second. The wiegand-in interface is used to connect external reader to construct master and slave system. Multi-model communications consisting of RS232/485, TCP/IP, USB host and Wi-Fi/GPRS (optional) allow an extremely easy data management.  It also has optional Wi-Fi and GPRS connectivity. The USB-host is used for data download and upload, including user template and record etc. Optional built-in 2000 mAh battery eliminates the trouble of power failure. It enables enterprise to manage more employees with less cost.

bff139fa05ac583f685a523ab3d110a010S990Detailed Introduction:

Card Capacity: 10,000 Cards
Transactions: 1,00,000 Logs
CPU: 32 bit Microprocessor – 800Mhz
Display : 2.8” TFT
Identification Speed : <=0.1 sec
FAR : <=0.0001%
FRR : <=1%
Communication : RS232/485, TCP/IP
USB-Port for Pendrive
Power Supply : 12V DC , 1.5Amp
Operating Temperature : 0°C – 45°C
Operating Humidity : 20% – 80%
Dimension(W x H x D): 210 x 157 x 40 mm
Access Control Interface:

Support : KR500E / Exit Button, 101HE
