Datasheet and Solution of MDVR CCTV System for School Buses.



MDVR CCTV System for School Bus, Cash Van, Cabs

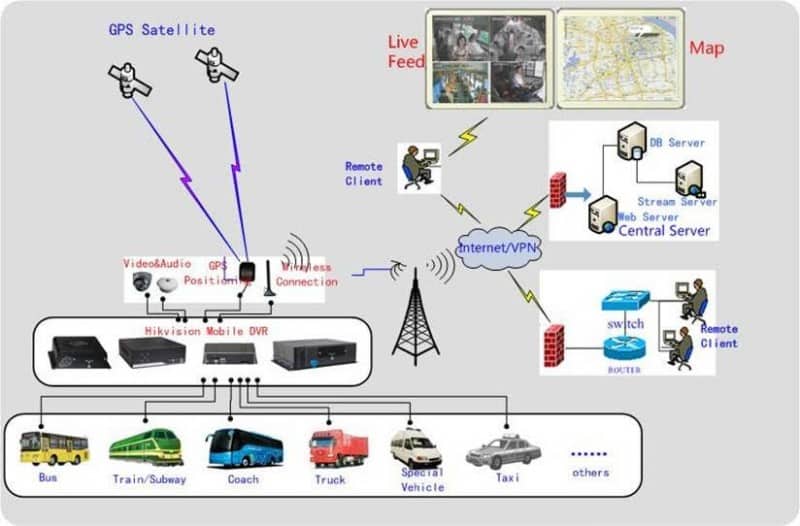

Hikvision Solution for buses

Price of Mobile DVR

MDVR

Mdvr price-

4ch 960P SD card mdvr @4000
4ch 1080 SD card mdvr @4400
4ch 960P HDD mdvr @7000
4ch 1080P HDD mdvr @7500
4ch 1080p SD ,4G, GPS mdvr @11000
4ch 1080p HDD 4G GPS mdvr@14000
2ch 7” 960p SD monitor mdvr set with 2 cameras and cables @6000
4ch 7” 960p SD monitor mdvr @7500
7” AV monitor @2400
7” VGA monitor @2800
7” HDMI monitor @3300
Bus camera dome and square 1080p @1200
Bus camera sideview @1300
* Sd card support up to 512G
*hdd /SSDup to 2TB
*All cameras can use indoor or outdoor
Sr No Item Description Model no QTY Price Amount
1 Hikvision 4 ch DVR with 512 Gb SSd DS-E04HQHI-B 1 5560 5560
2 Hikvision 2 dome camera DS-2CE76DOT-ITPFS 2 1340 2680
4 TFT screen 18 inch 1 6800 6800
5 12v 2 AMP SUPPLY 1 450 450
6 DC TO DC CONVERTER 24V TO 12V 1 1050 1050
7 CAMERA & DVR INSTALLATION TESTING & COMMISSIONING 3 700 2100
Total 18640
Tax 3355.2
Grand Total 21995.2

DS-M5504HMI@15500+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, pluggable Anti-vibration HDD box(1*SATA intterface, 1*USB interface) , 1*SD/SDHC slot, alarm I/O: 8/2

DS-M5504HMI/GW/Without GPS@18000+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, pluggable Anti-vibration HDD box(1*SATA intterface, 1*USB interface) , 1*SD/SDHC slot, alarm I/O: 8/2, without GPS ,Support WCDMA

DS-M5504HMI/GW/WI@25000+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, pluggable Anti-vibration HDD box(1*SATA intterface, 1*USB interface) , 1*SD/SDHC slot, alarm I/O: 8/2, built-in 3G(WCDMA) & GPS & WIFI module

DS-M5504HMI/GW@23000+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, pluggable Anti-vibration HDD box(1*SATA intterface, 1*USB interface) , 1*SD/SDHC slot, alarm I/O: 8/2, built-in 3G(WCDMA) & GPS module

DS-M5504HMI-SD/without GPS@9000+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, 2 x SD/SDHC/SDXC standard card slot, alarm I/O: 3/2? NO GPS

DS-M5504HMI-SD/GW

@14000+Tax

4-ch video & 4-ch audio input (BNC interface), CH1~CH4: 25/30fps@WD1, 2 x SD/SDHC/SDXC standard card slot, alarm I/O: 3/2, built-in 3G(WCDMA) & GPS

DS-2CE56C0T-IRPF@790+Tax

Software Licences@1200+Tax/Camera

Kindly share the Inquiry or requirement, if any. Fill the following form to get in touch with one of our experts.

In case you need any further clarification, please do not hesitate to contact us at any time.

Developed on the basis of the Linux operating system, DS-M5504HMI Series Mobile DVR is capable of providing powerful capabilities such as the audio/video encoding & decoding, 3G&wifi transmission, GPS, dual HDD design for data storage, hard disk vibration reduction solution, etc. The DVR provides the flexible channel selection and encoding solution, especially suitable for video and audio monitoring needing of buses, coach, school buses and other vehicles.

Features of MDVR DS-M5504HMI Series Mobile DVR

 For each channel of DS-M5504HMI, support WD1 encoding, and adopt H.264.  Dedicated GUI interface and easily operate.  Support accessing one 2.5-inch HDD/SSD and 1 SD/SDHC card; adopt pluggable way and patented airbags for vibration reduction technology.  Support power-off protection. Super capacitor can be enabled for sudden power off to realize normal shutdown, which will avoid video loss effectively.  With fan installed in hard disk box, temperature control can be realized intelligently.  With pluggable 3G and wifi model, it provides flexible wireless transmission.  Built-in high sensitivity GPS model, positioning information will be recorded with the video stream.  Private aviation connector is adopted to ensure stable signal.  Delay (0min~6h) shutdown and 24-hour scheduled startup/shutdown.  Die-cast aluminum chassis. Fanless design.  Wide-range power input (DC +8 ~ +36V)

Hikvision MDVR

Hikvision MDVR
