eSSL F19 ZkTeco Attendance Access Control Machine

eSSL F19 ZkTeco Attendance Access Control Machine

eSSL F19 ZkTeco Attendance Access Control Machine Biometric Fingerprint Time Attendance machine with Access Control

ZK Teco Fingerprint Attendance Machine eSSL F19

F19 is an innovative biometric fingerprint reader for Time Attendance and Access Control application. F19 presents an unmatched performance in recording attendance and controlling access. Biometric device F19 uses advanced algorithm for reliability, precision and excellent matching speed. The F19 features the quickest commercial-based fingerprint matching algorithm and high-performance, high-image quality infra-red detection fingerprint sensor. The F19 device offers flexibility to be installed as standalone device or with any third party access control panels that support standard Wiegand signal. All the operation can be done on the 3” TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.

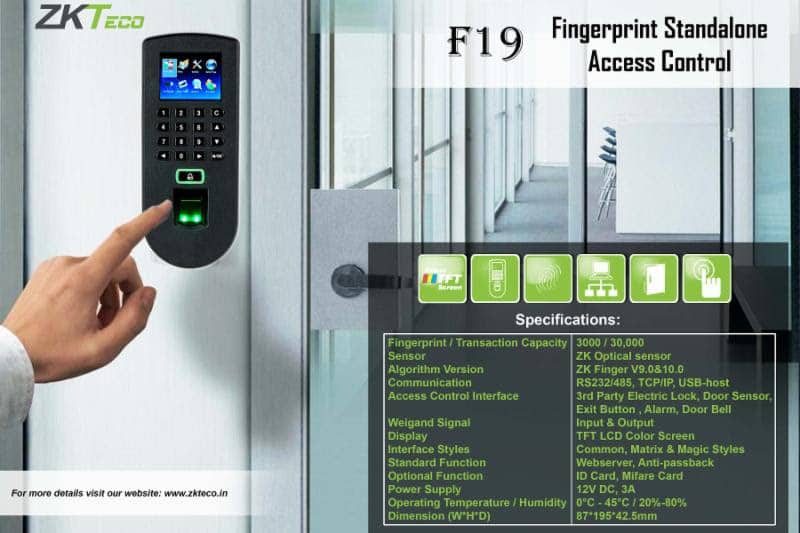

ZKTeco Standalone Access Control

ZKTeco Standalone Access Control

For more information about Biometric Attendance System, biometric fingerprint and RFID Time Attendance & Access Control Machine call us now at 9034757673, 9818390836.  You can email your requirements at info@ampletrails.com

Fields marked with an * are required
Feature
Special Feature Push Data Technology
Fingerprint Capacity 3000
Card Storage 3,000
Transaction storage 1,00,000

Biometric Fingerprint Time Attendance Machine With Access Control

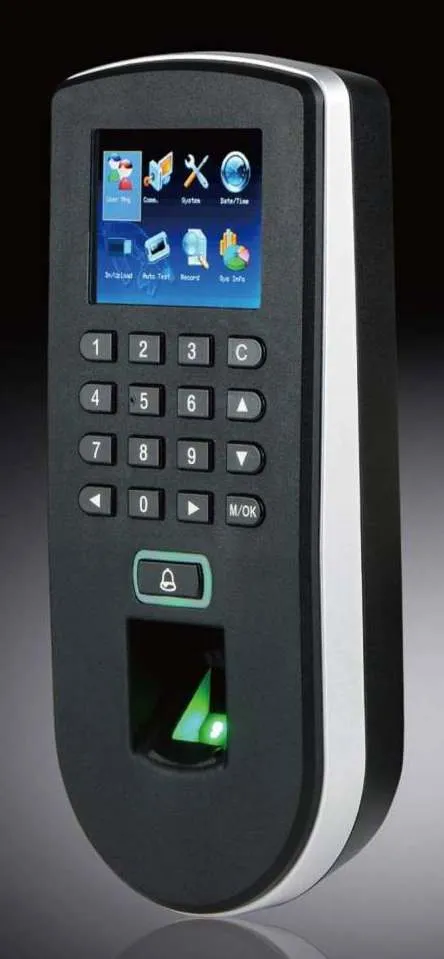

F19 Biometric Time Attendance Machine Access Control

F19 Biometric Time Attendance Machine Access Control

Features
Group Label Desciption
Storage Capacity Fingerprints templates 3000
Card Storage 3,000
Transaction storage 30,000
Card reader Yes
CPU 32 bit High End Microprocessor
Biometric Fingerprint sensor 500 DPI Optical sensor
FAR <=0.0001%
FRR <=1%
Identification speed <=0.5sec
Algorithm Ver 10
Audio/Visual Display 2.8
Keypad Yes
LED Indicator Green/Red
Schedule Bell/Speaker Mini Speaker
Communication Communication TCP/IP,USB,RS485
Push data Standard
Standard features Work Code,SMS,DLST, Self service query, Status Switch
Power & Environment Power Supply DC 12V: 1.5Amp
Operating Temperature 0oC to 45oC
Operating Humidity 20% -80%
Dimension 183 x 80 x42 mm
Access Control Wiegand In & Out
Relay 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm No
Door Sensor Yes
Anti Passback Yes
Door Bell Yes
Exit Readers Support exit readers FR 1200/KR 500
Optional Battery yes
Card readers Yes
Communication No
Sensor Mifare/HID Prox
Compatibility Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Compatible Software and SDK Smart office suite desktop and web
SDK for desktop applications
Web based Device Manager/ePush server using Push data. Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications
Major Applications Time & Attendance , Canteen management, School attedance,
Production Management, Gym & clubs
