AHD Cameras CCTV eSSL Sony

AHD Cameras CCTV eSSL Sony are new range of cameras in market for surveillance.  Analog High definition cameras have addressed the major issue which other HD security cameras are not able to address and is taking over the security cameras market.  Many of the people want to use the same coax cable but want to see high quality picture.  These cameras can easily be replaced with the traditional CCTV cameras without changing coax cable. Video baluns for AHD cameras are available for those that prefer to use UTP cable such as CAT5. Pricing on AHD cameras is only slightly more than analog but they comes with an extremely high quality picture.

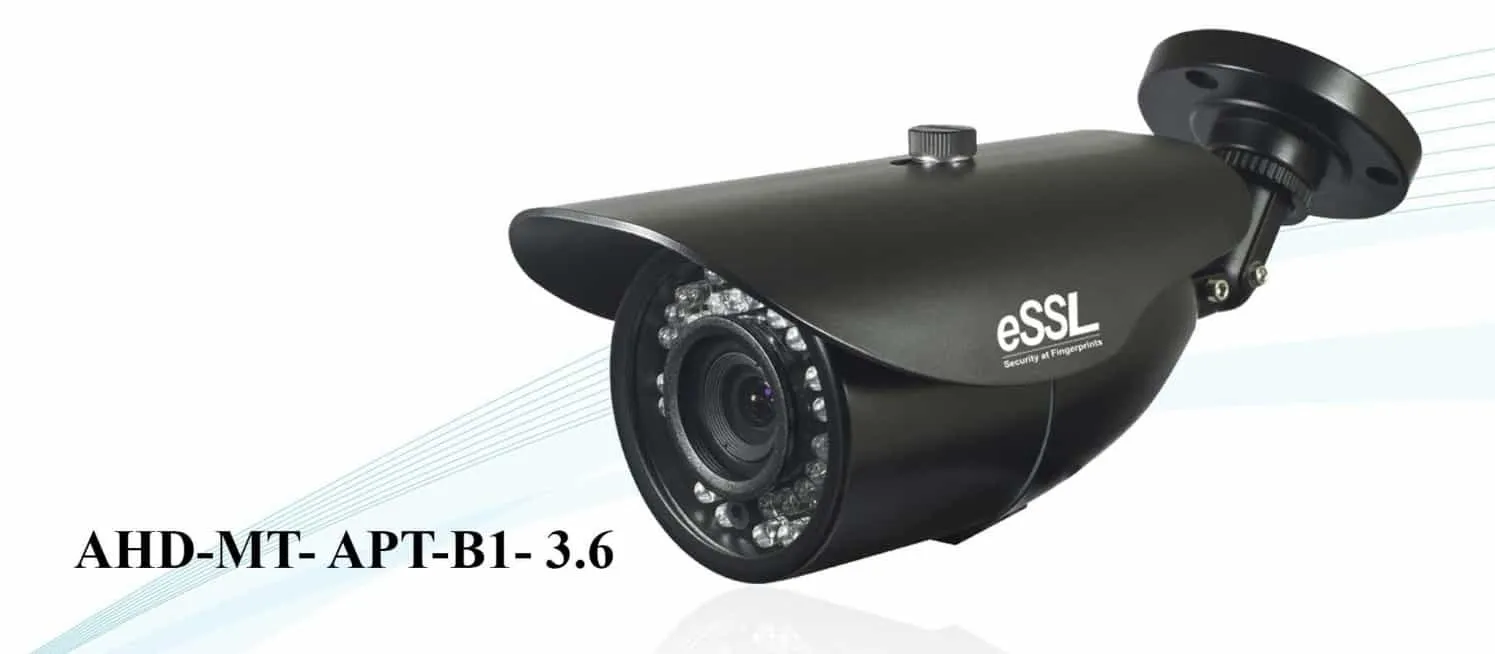

Analog High Defination Bullet Camera eSSL

Analog High Defination Bullet Camera eSSL Sony

  • 1/3″ Sony Image Sensor, 3.6mm Megapixel Lens
  • 960P HD Resolution
  • Smart IR, True Day/Night
  • IR Distance upto 15m
  • 24 IR LED’s with low illumination
  • Third party compatibility
Feature Specification
Image Sensor 1/3″
Effect Pixels PAL:1280(H)×720(V)
Lens installation 3.6MM MP
Sync Internal
Shutter 1/53~1/100000s
AGC AGC/ AGC + Slow shutter
S/N Ratio >50dB(AGC OFF)
Video output 1.0Vp-p,75Ω
Resolution  960P
Minimum Illumination Color 0.5Lux(F1.2,50IRE,AGC ON),
B/W : 0.01Lux(F1.2,50IRE,AGC ON)
D/N Switch Color /Auto
D/N Switch time 0~255
White Balance ATW /PUSH/User1/ User 2/ Manual/ANTI CR/PUSH
Mirror Vertical/ Horizontal / Vertical + Horizontal /Off
Feature Specification
DNR High/Medium to high/Medium/Low to medium/Low/Off
OSD No
IR Red 24 Pieces
IR wavelengths 850nm
IR Distance 8-15M
IR ON/OFF  Auto
Power DC12V±10%(AC24V optional)
Wattage 2.0W
Operating Temperature -10℃~50℃
Operating Humidity <90%
Storage Temperature -40℃~+60℃
Weight 500g

AHD Surveillance systems Bullet Camera Catalogue

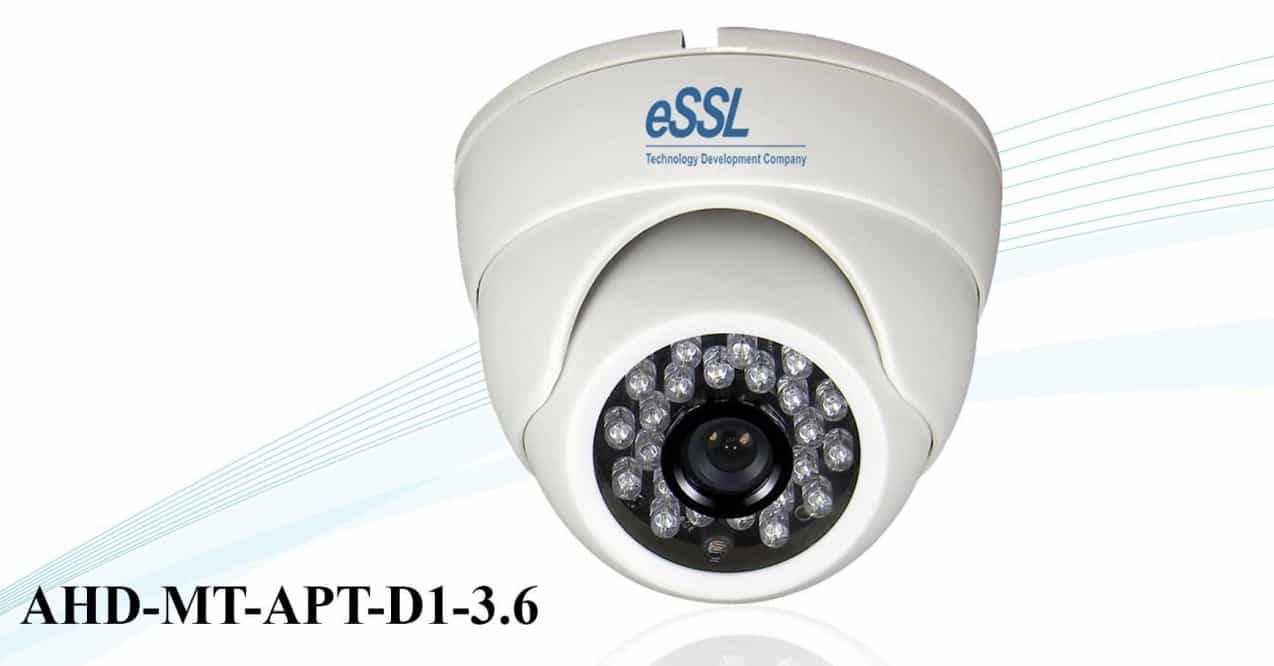

Analog High Defination Dom Camera eSSL

Analog High Defination Dom Camera eSSL

  • 1/3″ Sony Image Sensor, 3.6mm Megapixel Lens
  • 960P HD Resolution
  • Smart IR, True Day/Night
  • IR Distance upto 15m
  • 24 IR LED’s with low illumination
  • Third party compatibility
Feature Specification
Image Sensor 1/3″
Effect Pixels PAL:1280(H)×720(V)
Lens installation 3.6MM MP
Sync Internal
Shutter 1/53~1/100000s
AGC AGC/ AGC + Slow shutter
S/N Ratio >50dB(AGC OFF)
Video output 1.0Vp-p,75Ω
Resolution  960P
Minimum Illumination Color 0.5Lux(F1.2,50IRE,AGC ON),
B/W : 0.01Lux(F1.2,50IRE,AGC ON)
D/N Switch Color /Auto
D/N Switch time 0~255
White Balance ATW /PUSH/User1/ User 2/ Manual/ANTI CR/PUSH
Mirror Vertical/ Horizontal / Vertical + Horizontal /Off
Feature Specification
DNR High/Medium to high/Medium/Low to medium/Low/Off
OSD No
IR Red 24 Pieces
IR wavelengths 850nm
IR Distance 8-15M
IR ON/OFF  Auto
Power DC12V±10%(AC24V optional)
Wattage 2.0W
Operating Temperature -10℃~50℃
Operating Humidity <90%
Storage Temperature -40℃~+60℃
Weight 200g

AHD Surveillance systems eSSL Sony Dom Camera Catalogue

Fields marked with an * are required

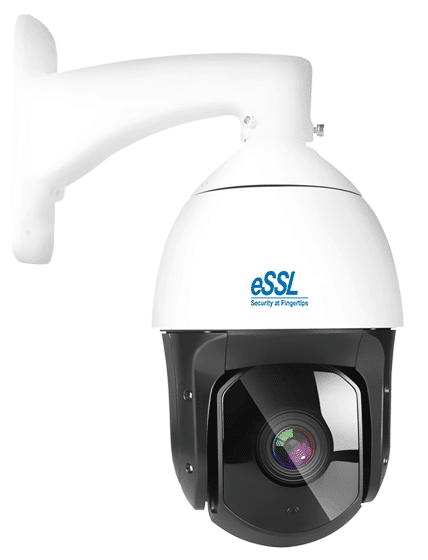

X-IP-PTZ-1.3-18X eSSL PTZ Camera

X-IP-PTZ-1.3-18X eSSL PTZ Camera
