Access Control Multi Door eSSL C3 400

essl Multi Door Access Control System

C3-400 is built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install. The C3-100 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders.
Our secure Web-hosted infrastructure and centralized online administration allow you to easily manage all of your access points in a single location. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.

  • TCP/IP and RS-485 communication
  • Built-in auxiliary input and output
  • Advanced access control functions
  • 1-door, 2-door, 4-door models

ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install.

Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series’ versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.

The C3 series control panle can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

Access Control Multi Door C3 400

Access Control Multi Door C3 400

Features of Access Control Multi Door C3 400:

  • SD card data backup
  • Multiple hardware protection measure
  • It can be integrated with other security systems such as CCTV , fire alarm , BAS ( Building Automation System)
    to configure total security system
  • The controller support different Wiegand format and can connect to different reader, including ID card reader,
    Mifare card reader and HID reader etc
  • It has input/output ports to control doors.
  • Normal open after first punch card can be setup.
  • It allows real-time monitoring and control of opening and closing of door by using the management software.
  • Interlock function (link different doors with special logic, if one door is opened the other three are closed).
  • Multi-card operation, anti-passback and duress mode.

Specifications of Access Control Multi Door C3 400

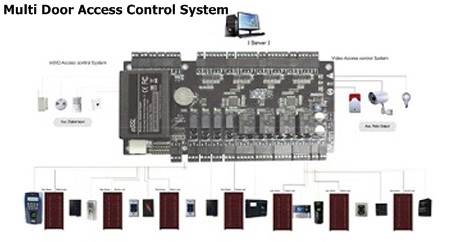

 Multi Door Access Control System
multi door access control system

multi door access control system

Capacity
Card Capacity 30,000
Event Buffer 1,00,000
Hardware
CPU 32bit MIPS CPU
RAM 256M Bits
Flash Memory 32M Bits
Display
LED Indicator for communication, power, status and punch card
Environment
Oper. Temp 0°-55°C
Oper. Humidity 10%-80%
Power
Power DC 9.6V-14.4V, Rated Max.1A
Dimension 218(W) x106(H)(single board) , 345(W) x 275(H) x 70(D) (With power
supply  and   metal box)
Communication
Comm. Port Ethernet, RS485
Wiegand Reader Port 4ea (26bit Wiegand, 8bit Burst for PIN)
Input Port 12ea (Exit Button#1, Door Sensor#1; Exit Button#2, Door
Sensor#2; Exit  Button#3, Door  Sensor#3; Exit Button#4, Door
Sensor#4, Aux1, Aux2, Aux3, Aux4)
Output Port   4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
4ea (4 Aux FORM-C Relay Output, SPDT 2A@30VDC)
Baud rate   38,400bps (Recommended) 9600bps, 19,200bps, 57,600bps
(Selectable)
Certification CE, FCC, RoHS
To download the brochure of  Access Control Multi Door C3 400 click here.

Specification
Number of Doors Controlled  4 Door
Number of Readers Supported  4
Types of Readers Supported 26-bit Wiegand, others upon request
Number of Inputs 12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Power/Current DC 9.6V-14.4V, Rated Max. 1A
Card Holders Capacity  30,000
Log Events Capacity 100,000
 Weight 7.8lbs (3.55kg)
Communication TCP/IP, RS-485 and WiFi optional
Enclosure Powder Coated Aluminium
Operating Temperature 0°C – 55°C
Operating Humidity 10% to 80%
relative humidity non-condensing
Mounting Wall Mount
Recommended Power Supply  12V DC, 1.5A
 Dimensions (Bundle Only) 15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)
 Dimensions ( Board Only)  6.3in.×4.17in.
(160mm×106mm)



Technical Specifications

 Number of Doors Controlled

 1 Door

 2 Door

 4 Door

 Number of Readers Supported

 2

 4

 4

 Types of Readers Supported

 26-bit Wiegand, others upon request

 26-bit Wiegand, others upon request

 26-bit Wiegand, others upon request

 Number of Inputs

 2 (Exit Device and Door Status, AUX)

 6 (2 Exit Device, 2 Door Status, 2 AUX)

 12 (4 Exit Device, 4 Door Status, 4 AUX)

 Number of Outputs

 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)

 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output)

 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)

 Card Holders Capacity

 30,000

 30,000

 30,000

 Log Events Capacity

 100,000

 100,000

 100,000

 Weight

 7.4lbs (3.35kg)

 7.5lbs (3.4kg)

 7.8lbs (3.55kg)

 Communication

TCP/IP, RS-485 and WiFi optional

TCP/IP, RS-485 and WiFi optional

 TCP/IP, RS-485 and WiFi optional

 Enclosure

 Powder Coated Aluminium

 Powder Coated Aluminium

 Powder Coated Aluminium

 Mounting

 Wall Mount

 Wall Mount

 Wall Mount

 Recommended Power Supply

 12V DC, 1.5A

 12V DC, 1.5A

 12V DC, 1.5A

 Dimensions (Bundle Only)

 15in.×3.15in.×11in.
380mm(L) X 80mm(W) X 280mm(H)

 15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)

 15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)

 Dimensions ( Board Only)

 6.3in.×4.17in.
(160mm×106mm)

 6.3in.×4.17in.
(160mm×106mm)

 6.3in.×4.17in.
(160mm×106mm)

To purchase this device or for more information like pricing and features please fill the form or call us at 9818390836, 9034757673, or mail us your requirements at info@ampletrails.com Our expert will understand your requirements and will guide you with the right products.
